Griffin Pro 26" Dirt Jump Bike - 22.8" TT

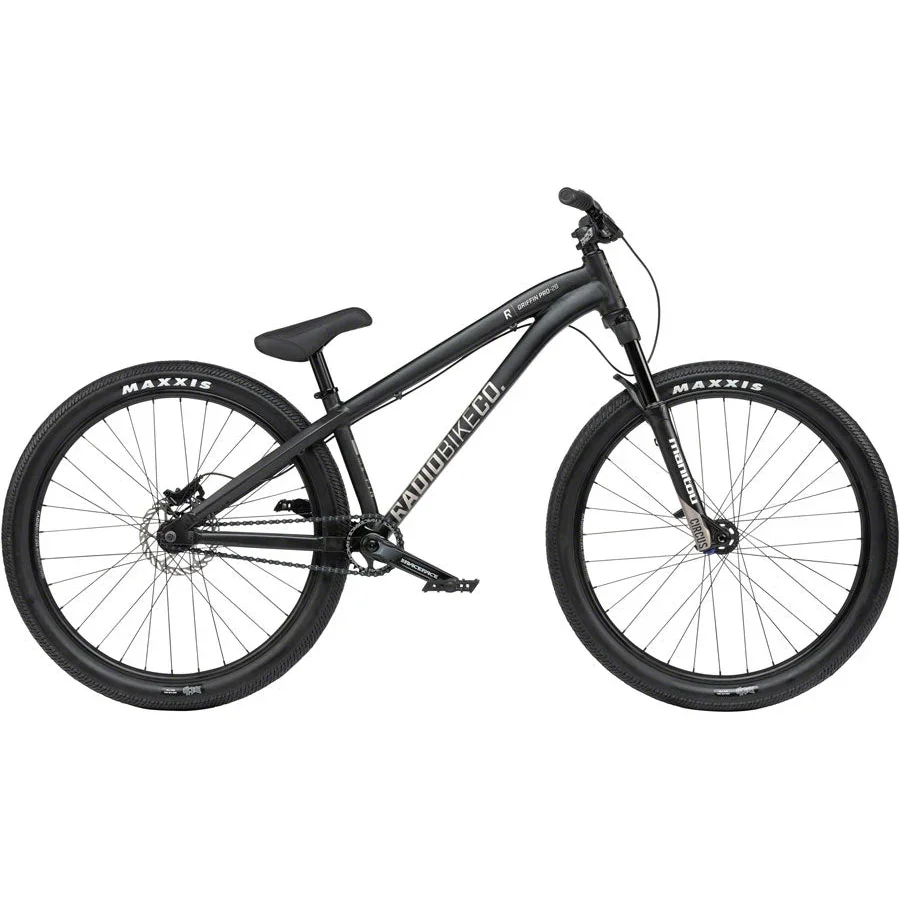

Product image 1
1 / 3

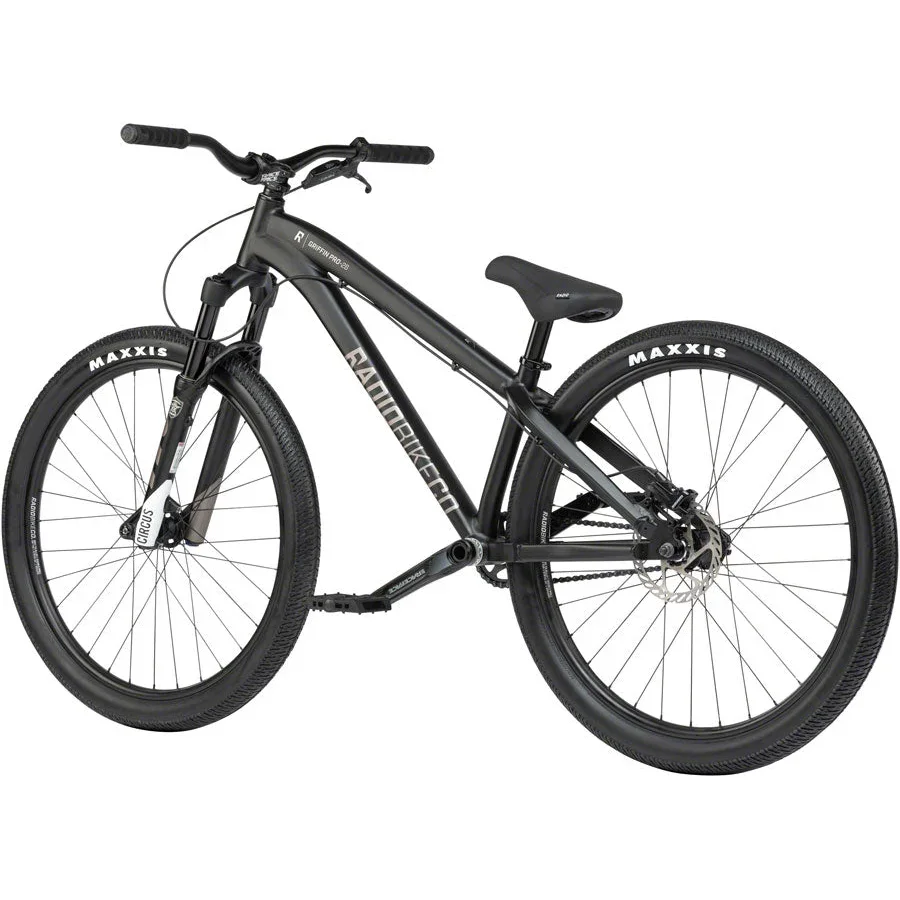

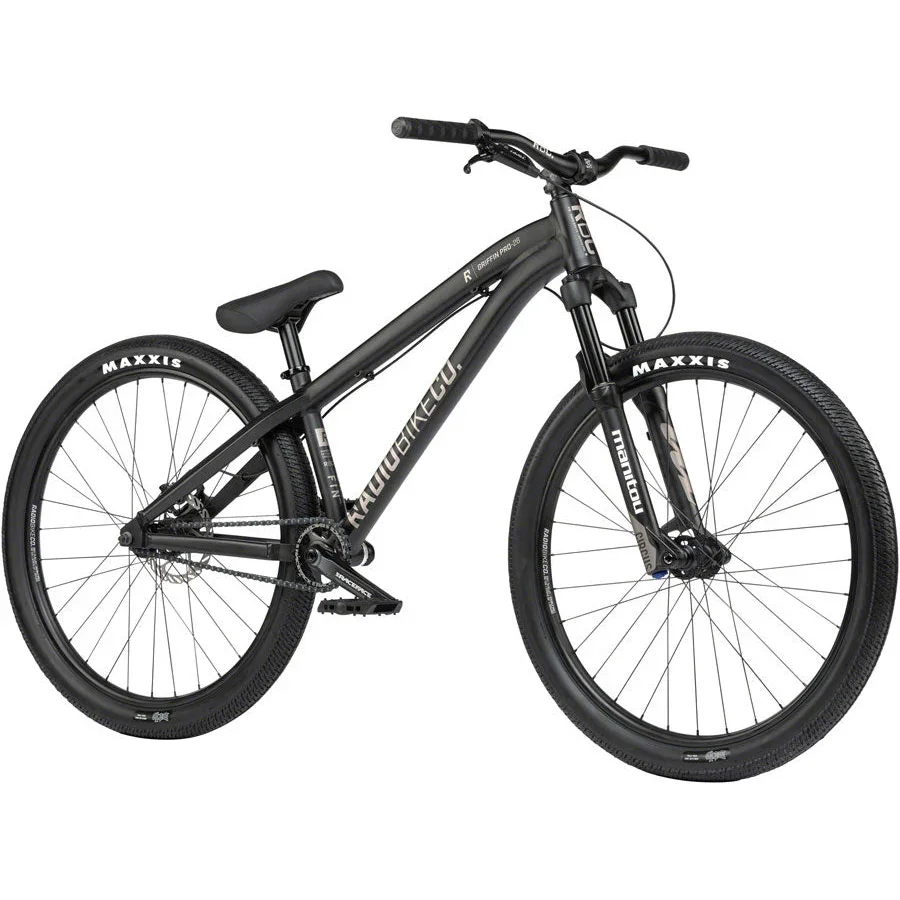

Griffin Pro 26" Dirt Jump Bike - 22.8" TT

A vicious unit that packs a real punch, this blacked out machine is an unstoppable partner for the rider needing a bike of no compromises.

The crème de la crème of 26” bikes, the Griffin PRO is built around a super light and stiff 6061-T6 Alloy frame and is adorned with Manitou “Circus Expert” 100mm forks and a premium level parts package from Race Face and Maxxis.

Specifications

  • FRAME RADIO “GRIFFIN PRO” frame, 6061-T6 hydroformed & butted alloy, tapered head tube, forged yoke
  • FORK MANITOU “CIRCUS EXPERT” 100mm travel
  • HANDLEBAR RADIO “GRIFFIN” bar, 6061-T6 alloy, 35mm
  • GRIPS RADIO “FREQUENCY XL” grips, flangeless, 160mm
  • STEM RACE FACE “CHESTER 35” front load stem, alloy, 40mm reach
  • HEADSET FSA “NO.42/ACB-A” integrated a-headset, 1-1/8″-1.5″
  • BRAKE LEVER TEKTRO “RS-360A” front, SRAM “DB-LVL-A1” rear
  • BRAKE TEKTRO “ARIES” mechanical disc brake front, SRAM “DB-LVL-A1” hydraulic disc brake rear, 160mm rotor
  • CRANK RACE FACE “AEFFECT” crank alloy, 170mm
  • BB RACE FACE “AEFFECT” crank alloy, 170mm
  • PEDALS RADIO “SLIM” nylon/fiberglass pedals
  • CHAIN SALT “AM” chain, WZ1 type
  • SPROCKET RACE FACE “AEFFECT” alloy sprocket 28T
  • DRIVER 10T cassette driver, sealed bearing
  • FRONT HUB RADIO “PRO-DJ” disc hub, sealed, 15mm alloy through axle, 32h
  • REAR HUB RADIO “PRO-DJ” disc hub, sealed, 3/8″s crmo axle, 32h
  • FRONT RIM RADIO “DB-T25” rim, double wall, sleeved
  • REAR RIM RADIO “DB-T25” rim, double wall, sleeved
  • SEAT RADIO “CENTURY” pivotal seat, fat padded
  • SEAT POST RADIO “PIVOTAL” seat post, alloy
  • SEAT CLAMP RADIO “SLIM” 31.8mm alloy clamp
  • TIRES MAXXIS “DTH” tires, 2.3″ front & rear
  • WEIGHT 11.31kg / 24.94lbs

Geometry

FRAME GEOMETRY

  • TOP TUBE LENGTH 22.8″
  • CHAIN STAY LENGTH 15″
  • HEAD TUBE ANGLE 70°
  • SEAT TUBE ANGLE 70°
  • BOTTOM BRACKET HEIGHT 14mm drop
  • STANDOVER HEIGHT 10.2″

HANDLEBAR GEOMETRY

  • RISE 50mm
  • WIDTH 760mm
  • BACKSWEEP 8°
  • UPSWEEP 3°

A vicious unit that packs a real punch, this blacked out machine is an unstoppable partner for the rider needing a bike of no compromises.

The crème de la crème of 26” bikes, the Griffin PRO is built around a super light and stiff 6061-T6 Alloy frame and is adorned with Manitou “Circus Expert” 100mm forks and a premium level parts package from Race Face and Maxxis.

Specifications

  • FRAME RADIO “GRIFFIN PRO” frame, 6061-T6 hydroformed & butted alloy, tapered head tube, forged yoke
  • FORK MANITOU “CIRCUS EXPERT” 100mm travel
  • HANDLEBAR RADIO “GRIFFIN” bar, 6061-T6 alloy, 35mm
  • GRIPS RADIO “FREQUENCY XL” grips, flangeless, 160mm
  • STEM RACE FACE “CHESTER 35” front load stem, alloy, 40mm reach
  • HEADSET FSA “NO.42/ACB-A” integrated a-headset, 1-1/8″-1.5″
  • BRAKE LEVER TEKTRO “RS-360A” front, SRAM “DB-LVL-A1” rear
  • BRAKE TEKTRO “ARIES” mechanical disc brake front, SRAM “DB-LVL-A1” hydraulic disc brake rear, 160mm rotor
  • CRANK RACE FACE “AEFFECT” crank alloy, 170mm
  • BB RACE FACE “AEFFECT” crank alloy, 170mm
  • PEDALS RADIO “SLIM” nylon/fiberglass pedals
  • CHAIN SALT “AM” chain, WZ1 type
  • SPROCKET RACE FACE “AEFFECT” alloy sprocket 28T
  • DRIVER 10T cassette driver, sealed bearing
  • FRONT HUB RADIO “PRO-DJ” disc hub, sealed, 15mm alloy through axle, 32h
  • REAR HUB RADIO “PRO-DJ” disc hub, sealed, 3/8″s crmo axle, 32h
  • FRONT RIM RADIO “DB-T25” rim, double wall, sleeved
  • REAR RIM RADIO “DB-T25” rim, double wall, sleeved
  • SEAT RADIO “CENTURY” pivotal seat, fat padded
  • SEAT POST RADIO “PIVOTAL” seat post, alloy
  • SEAT CLAMP RADIO “SLIM” 31.8mm alloy clamp
  • TIRES MAXXIS “DTH” tires, 2.3″ front & rear
  • WEIGHT 11.31kg / 24.94lbs

Geometry

FRAME GEOMETRY

  • TOP TUBE LENGTH 22.8″
  • CHAIN STAY LENGTH 15″
  • HEAD TUBE ANGLE 70°
  • SEAT TUBE ANGLE 70°
  • BOTTOM BRACKET HEIGHT 14mm drop
  • STANDOVER HEIGHT 10.2″

HANDLEBAR GEOMETRY

  • RISE 50mm
  • WIDTH 760mm
  • BACKSWEEP 8°
  • UPSWEEP 3°
$1,869.99
Griffin Pro 26" Dirt Jump Bike - 22.8" TT—
$1,869.99

Description

A vicious unit that packs a real punch, this blacked out machine is an unstoppable partner for the rider needing a bike of no compromises.

The crème de la crème of 26” bikes, the Griffin PRO is built around a super light and stiff 6061-T6 Alloy frame and is adorned with Manitou “Circus Expert” 100mm forks and a premium level parts package from Race Face and Maxxis.

Specifications

  • FRAME RADIO “GRIFFIN PRO” frame, 6061-T6 hydroformed & butted alloy, tapered head tube, forged yoke
  • FORK MANITOU “CIRCUS EXPERT” 100mm travel
  • HANDLEBAR RADIO “GRIFFIN” bar, 6061-T6 alloy, 35mm
  • GRIPS RADIO “FREQUENCY XL” grips, flangeless, 160mm
  • STEM RACE FACE “CHESTER 35” front load stem, alloy, 40mm reach
  • HEADSET FSA “NO.42/ACB-A” integrated a-headset, 1-1/8″-1.5″
  • BRAKE LEVER TEKTRO “RS-360A” front, SRAM “DB-LVL-A1” rear
  • BRAKE TEKTRO “ARIES” mechanical disc brake front, SRAM “DB-LVL-A1” hydraulic disc brake rear, 160mm rotor
  • CRANK RACE FACE “AEFFECT” crank alloy, 170mm
  • BB RACE FACE “AEFFECT” crank alloy, 170mm
  • PEDALS RADIO “SLIM” nylon/fiberglass pedals
  • CHAIN SALT “AM” chain, WZ1 type
  • SPROCKET RACE FACE “AEFFECT” alloy sprocket 28T
  • DRIVER 10T cassette driver, sealed bearing
  • FRONT HUB RADIO “PRO-DJ” disc hub, sealed, 15mm alloy through axle, 32h
  • REAR HUB RADIO “PRO-DJ” disc hub, sealed, 3/8″s crmo axle, 32h
  • FRONT RIM RADIO “DB-T25” rim, double wall, sleeved
  • REAR RIM RADIO “DB-T25” rim, double wall, sleeved
  • SEAT RADIO “CENTURY” pivotal seat, fat padded
  • SEAT POST RADIO “PIVOTAL” seat post, alloy
  • SEAT CLAMP RADIO “SLIM” 31.8mm alloy clamp
  • TIRES MAXXIS “DTH” tires, 2.3″ front & rear
  • WEIGHT 11.31kg / 24.94lbs

Geometry

FRAME GEOMETRY

  • TOP TUBE LENGTH 22.8″
  • CHAIN STAY LENGTH 15″
  • HEAD TUBE ANGLE 70°
  • SEAT TUBE ANGLE 70°
  • BOTTOM BRACKET HEIGHT 14mm drop
  • STANDOVER HEIGHT 10.2″

HANDLEBAR GEOMETRY

  • RISE 50mm
  • WIDTH 760mm
  • BACKSWEEP 8°
  • UPSWEEP 3°
