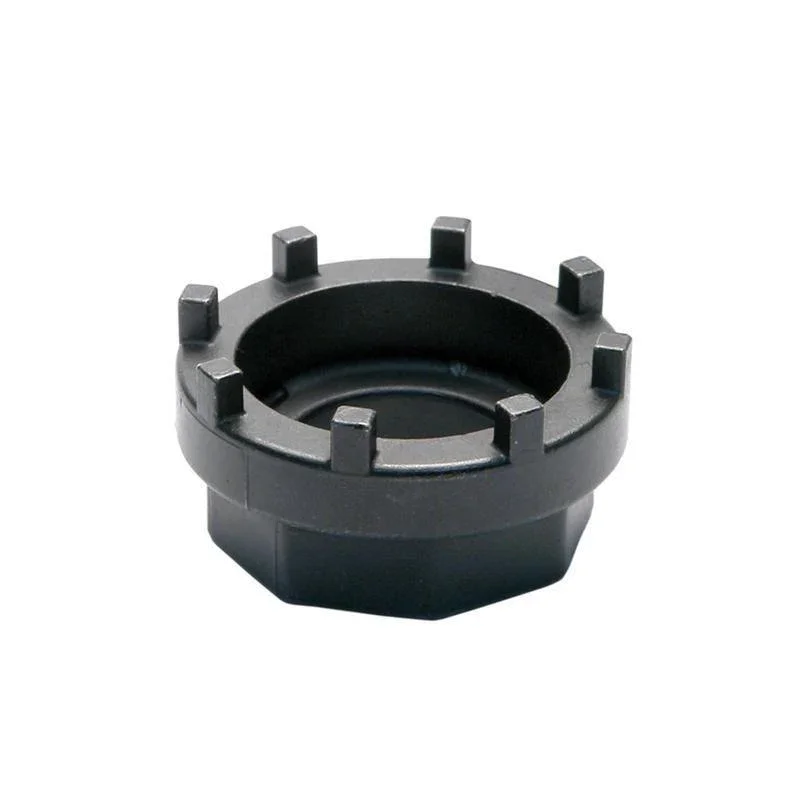

BBT-18 Bottom Bracket Bike Tool for 8-Notch ISIS Cups
The BBT-18 is a heavy duty, investment cast tool for installing and removing the following eight-notch bottom bracket cups:
- Shimano® Octalink® right cup with external notches
- ISIS Drive™
BBT-18 Features
The BBT-18 has 8 notches with an outside diameter of nominally 43.4mm. The inside-to-inside width is approximately 38mm. Each notch is approximately 3.9mm wide. The hole in the center of the casting is 22.5mm, and will not fit over the 30mm spindles.
The BBT-18 is a heavy duty, investment cast tool for installing and removing the following eight-notch bottom bracket cups:
- Shimano® Octalink® right cup with external notches
- ISIS Drive™
BBT-18 Features
The BBT-18 has 8 notches with an outside diameter of nominally 43.4mm. The inside-to-inside width is approximately 38mm. Each notch is approximately 3.9mm wide. The hole in the center of the casting is 22.5mm, and will not fit over the 30mm spindles.
